Model Description


Pure honest fun

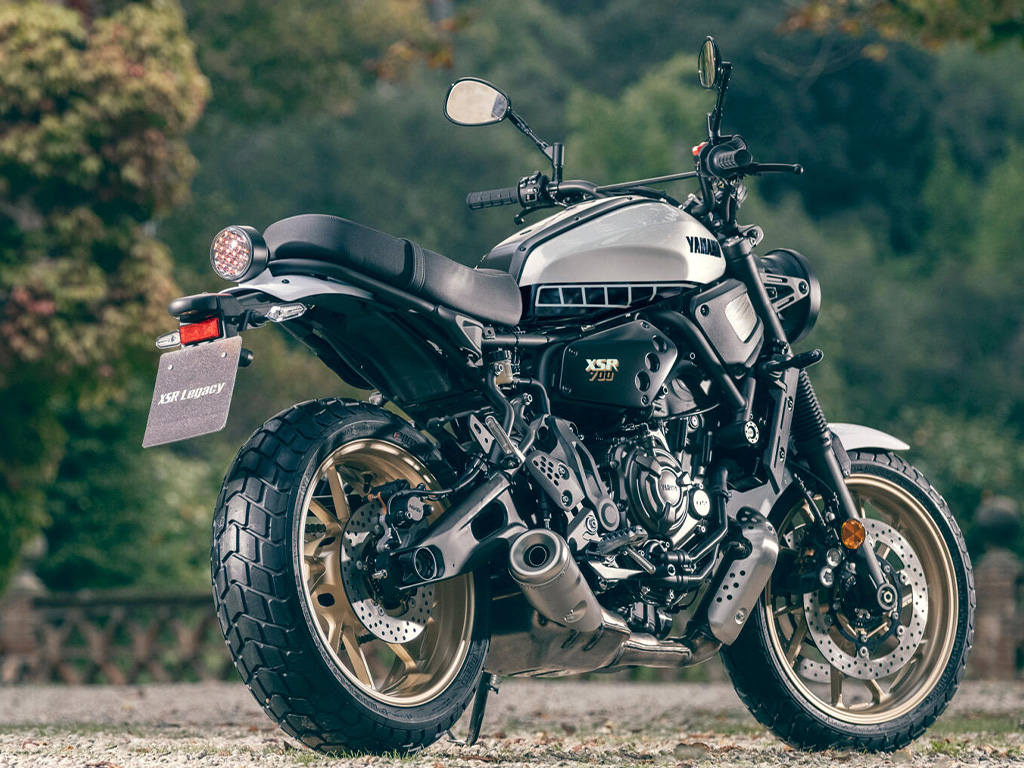

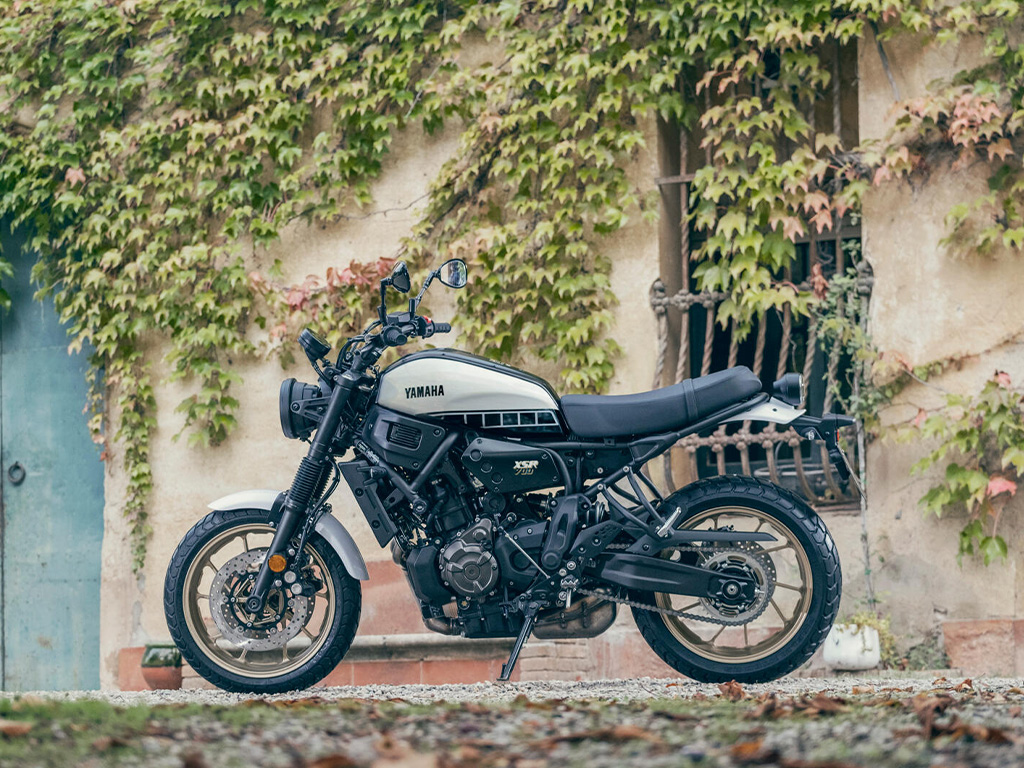

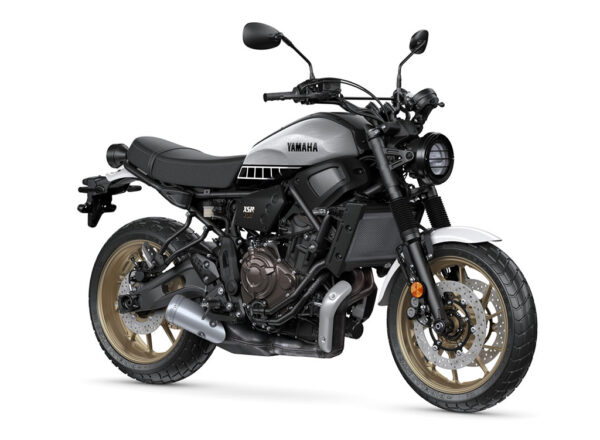

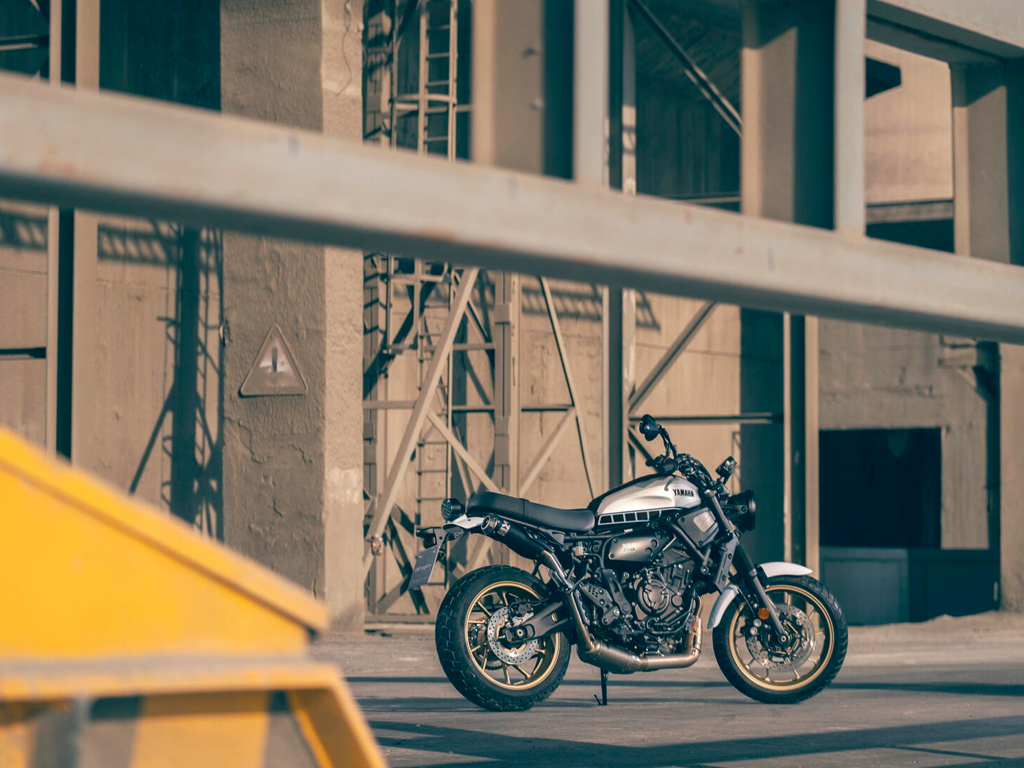

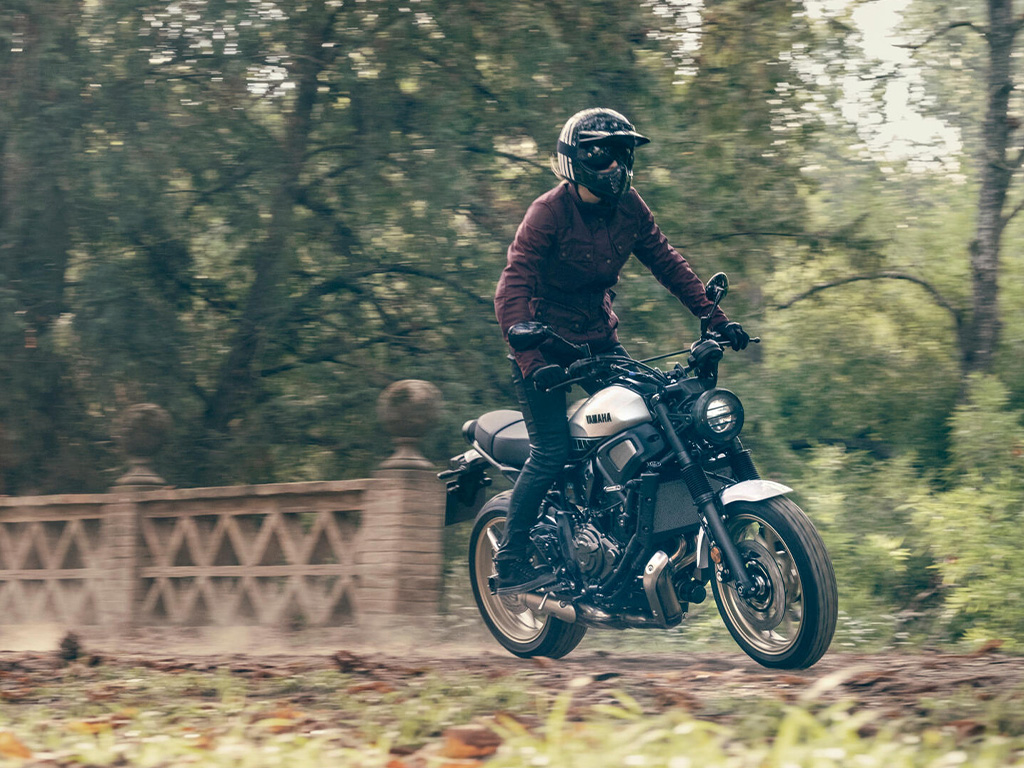

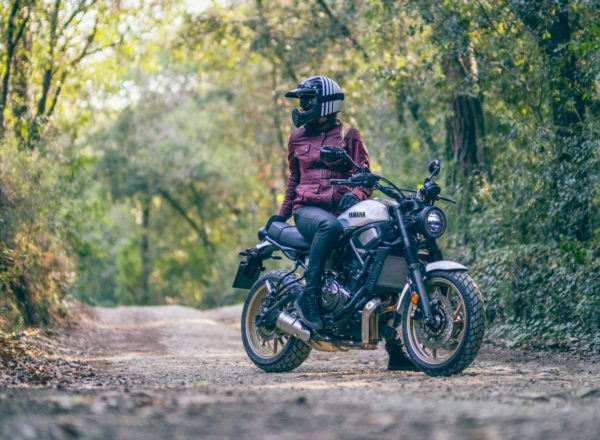

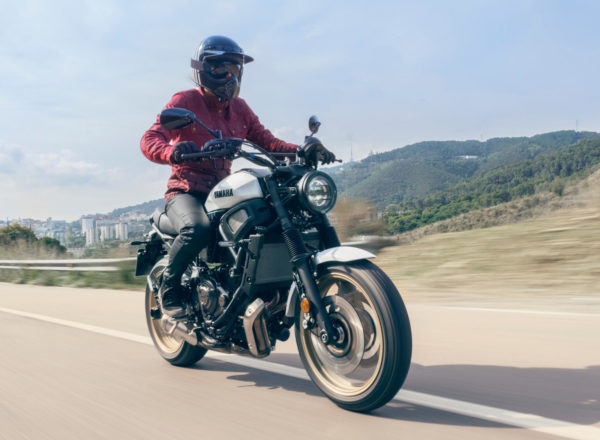

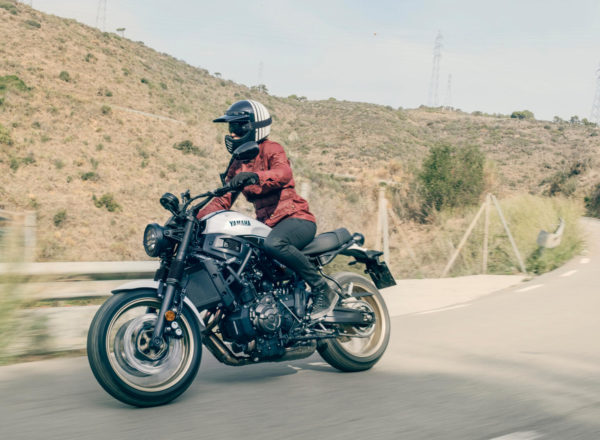

Featuring timeless scrambler looks inspired by some of Yamaha’s most iconic machines from another era, the XSR700 Legacy is the kind of motorcycle that makes you feel very special on every ride. And behind its classic persona you’ll discover the very latest engine and chassis technology that’s ready to deliver truly thrilling performance.

By creating an alternative style of bike that blends retro style with modern technology, Yamaha XSR models give you the opportunity to ride your own way. With its wide braced handlebars and round lights – as well as unique colours and block pattern tyres, this compact Sport Heritage bike will be the centre of attention.

XSR700 Legacy is great to look at – and even better to ride! The beating heart of this charismatic modern retro is Yamaha’s iconic 690cc CP2 engine that punches well above its weight to give amazing acceleration. And the combination of a compact tubular chassis with plush suspension and block pattern tyres gives outstanding agility and roadholding on the street and gravel.

Colours

– Speedblock Silver

Details

  • Top-class look & feel
  • Timeless style, up to the minute technology
  • Light, compact and agile
  • Best-selling torque-rich engine
  • Light and slim tubular backbone frame

Model Specification


  • Engine

    Engine Type

    4-stroke, 2-cylinder, Liquid-cooled, DOHC, CP2, 4-valves

    Displacement

    689cc

    Bore x Stroke

    80.0×68.6 mm

    Compression Ratio

    11.5:1

    Maximum Power

    54.0kW(73.4PS)/8750r/min

    Maximum Torque

    67.0N·m(6.8kgf·m)/6500r/min

    Starter System

    Electronic ignition (TCI)

    Transmission

    Constant Mesh, 6-speed

    Lubrication System

    Wet sump

    Clutch Type

    Wet, Multiple Disc

    Ignition System

    Electronic ignition (TCI)

    Final Transmission

    Chain

    Fuel Consumption

    4.3 L/100 km

    CO2 Emissions

    100 g / km

    Fuel System

    Fuel Injection

  • Dimensions

    Oil Tank Capacity

    3.00 L

    Fuel Tank Capacity

    14 L

    Length (mm)

    2,075 mm

    Width (mm)

    865 mm

    Height (mm)

    1,120 mm

    Wheel Base (mm)

    1,405 mm

    Weight (kg)

    Ground Clearance (mm)

    140 mm

  • Frame

    Front Tyre

    120/70 ZR 17M/C(58W) Tubeless

    Rear Tyre

    180/55 ZR 17M/C(73W) Tubeless

    Frame

    Diamond

    Caster Angle

    24°30′

    Trail

    90 mm

    Front Suspension System

    Telescopic fork

    Rear Suspension System

    (Link type suspension), Swingarm

    Front Travel

    130 mm

    Rear Travel

    130 mm

    Front Brake

    298 mm

    Rear Brake

    245 mm
